6.3.2 Importing 3D radiation pattern

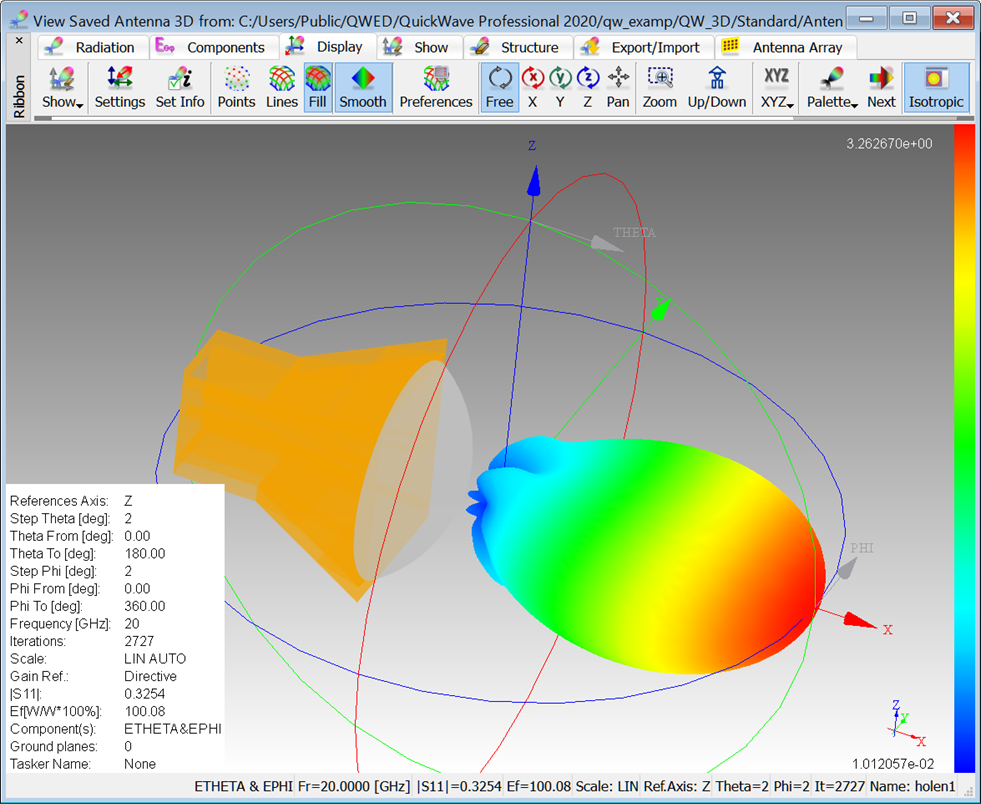

3D Radiation pattern window allows viewing 3D radiation pattern saved in *.an3 file by using button in Results tab of QW-Simulator and Results->Saved 3D Radiation Pattern command from main menu of QW-Simulator.

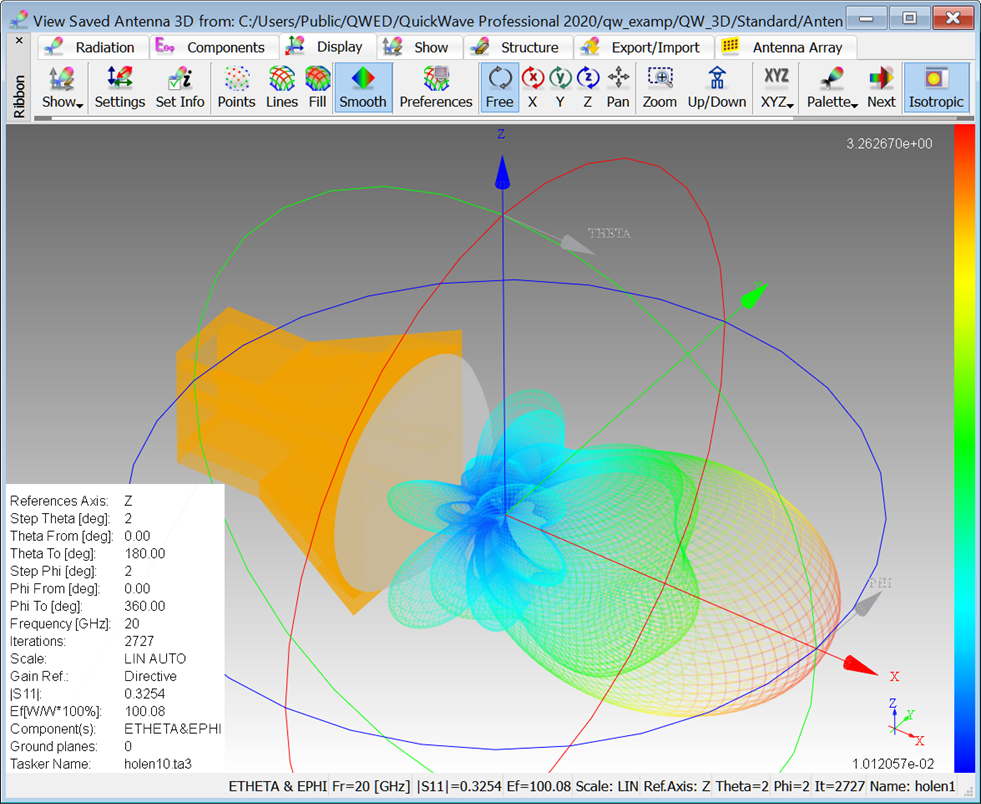

3D Radiation Pattern window allows loading the the reference of the 3D radiation pattern from the *.an3 file with button in Export/Import tab and Import Results->Load Reference… command from main menu or context menu.
