6.5.5    Info Antenna 3D

The View Info command from main menu or context menu invokes Info Antenna 3D dialogue.

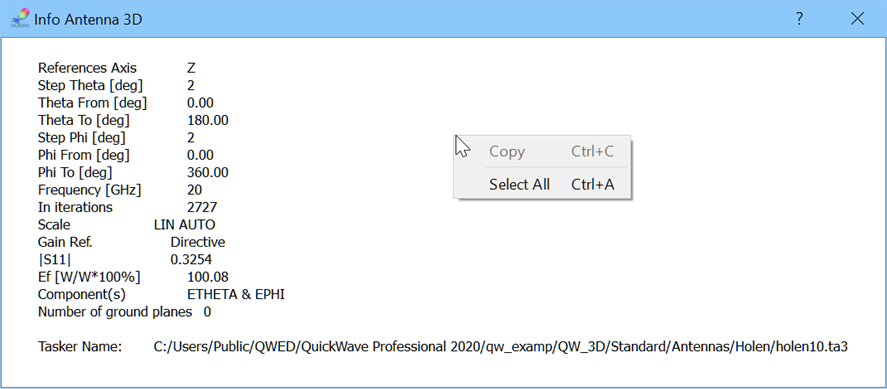

The Info Antenna 3D dialogue contains the information about actual 3D radiation pattern results (set in the 3D Radiation Patterns dialogue) i.e. references axis, steps of Theta and Phi, frequency at which the 3D radiation pattern is shown, FDTD iteration at which the 3D radiation pattern has been constructed, scale, gain reference, reflection coefficient at the frequency (if available from S-Parameters post-processing), radiation efficiency, component, tasker name.

The context menu can be invoked by pressing the right mouse button over the dialogue and allows selecting all information and copying it to the clipboard.
