2.6     Project preparation wr340

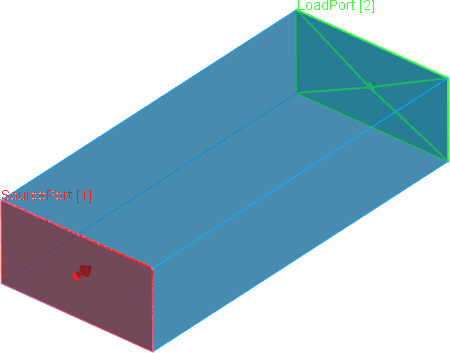

The model is a rectangular waveguide WR-340 excited with a fundamental TE₁₀ mode (red transmission line port) and terminated with a load port (green transmission line port) matched to the waveguide. The waveguide is filled with air.

The project creation process can be divided into several steps:

• New project

• Defining the type of the structure and background medium

• Drawing the structure

• Drawing the ports

• Setting boundary conditions

• Setting up the mesh

• Exporting the project and running the simulation
