2.26 Wires Grid Change

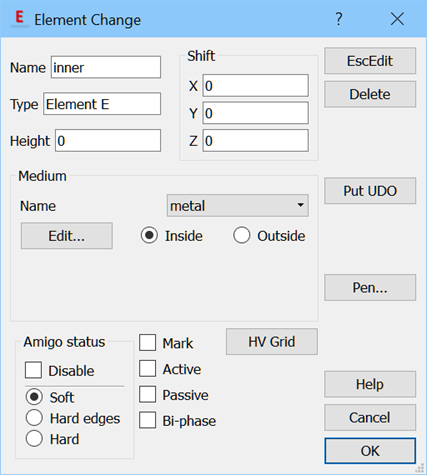

The Element Change dialogue allows changing position and parameters of elements and can be invoked from Select Element dialogue or from Edit Element context menu.

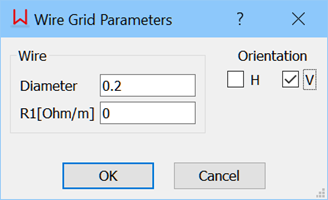

Wire grid can be applied to a metal element of zero height after HV Grid button is pressed and wire grid parameters are set.

Wire grid really means drawing a frame (rectangular in XZ, YZ planes; arbitrarily-shaped in XY plane), which is then filled with wires of a horizontal (H) or vertical (V) orientation. The number and locations of wires in the wire grid automatically adjusts to the mesh and mesh changes.

EcsEdit exits the dialogue and escapes the the Edit Element mode (the cursor in the 2D Window return to arrow). OK or Cancel exit the dialogue but do not escape the Edit Element mode (the cursor in the 2D Window remains square).

See also Wire Grids (Asymptotic Boundary Conditions) chapter for more information.
