5.2.3     Join operations on combined elements

Let us consider an example of a structure composed of a cone and a cylinder intersecting each other, made of the same medium (see example Joinex/cpol1.pro). Two elements (a regular and a combined one) are not joined together.

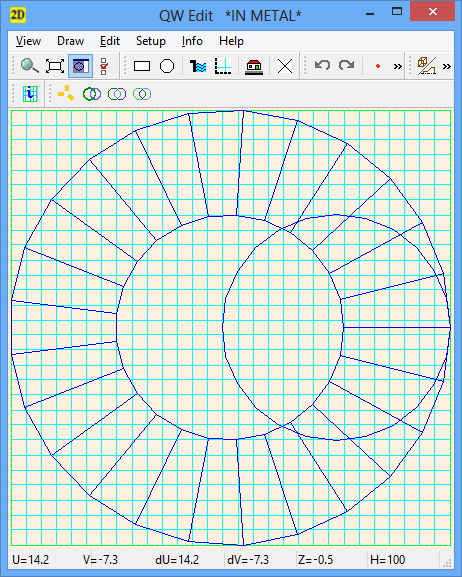

Let us try to mesh that example using File->Export & Run->Export & Test command from main menu or  button from Simulation tab of the Ribbon. We can see the structure as seen in QW-Editor as well as one of the intermediate layers of the FDTD cells as seen in the Test Mesh window. The software has meshed the structure correctly. It has assumed that at the time of meshing the Join operation needs to be performed at each cell level.

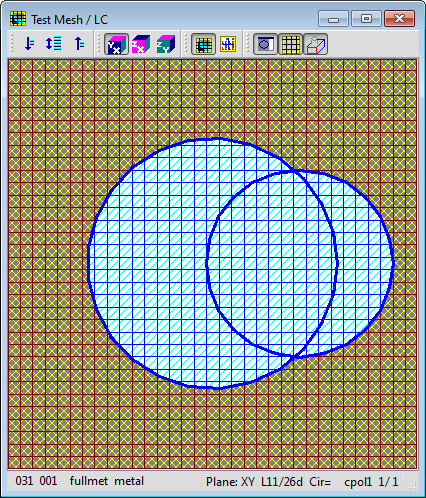

Illustration of example cpol1.pro.

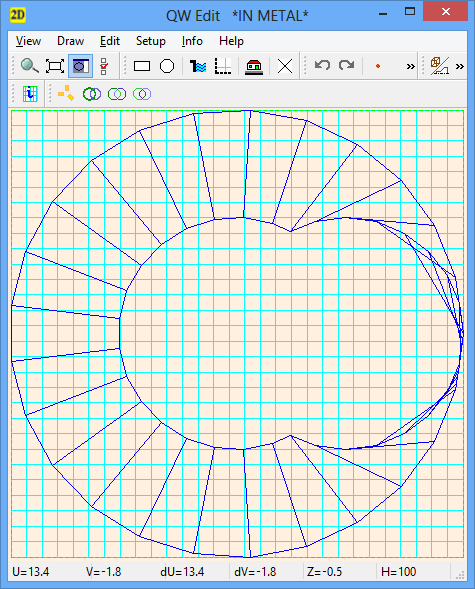

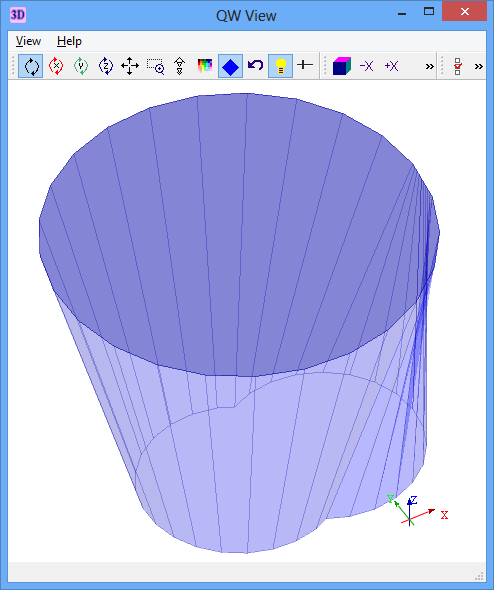

Let us now try to perform the Join operation explicitly in QW-Editor. We mark the cone as Active, cylinder as Passive and execute Glue operation. The software treats both elements as combined ones and performs the Join operation at the upper and lower levels (at the bottom and the cover). Then it tries to draw links between the consecutive points of the new bottom and the new cover. As a result the meshing at intermediate level is not fully correct. This brings an important conclusion about performing logical Join operations on combined elements. In general, the joint operations on combined elements can bring inaccurate or even erroneous results due to ambiguity of paths of links between the consecutive points of the bottom and cover contours. Thus there are two basic rules of choosing if the Join operations on combined should be performed:

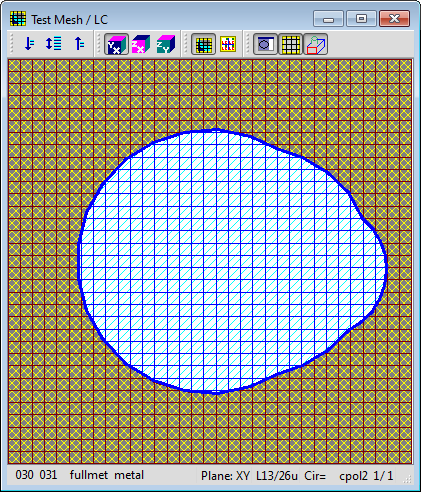

Illustration of example cpol2.pro.
