3.5.2    S-Parameters SMN Objective

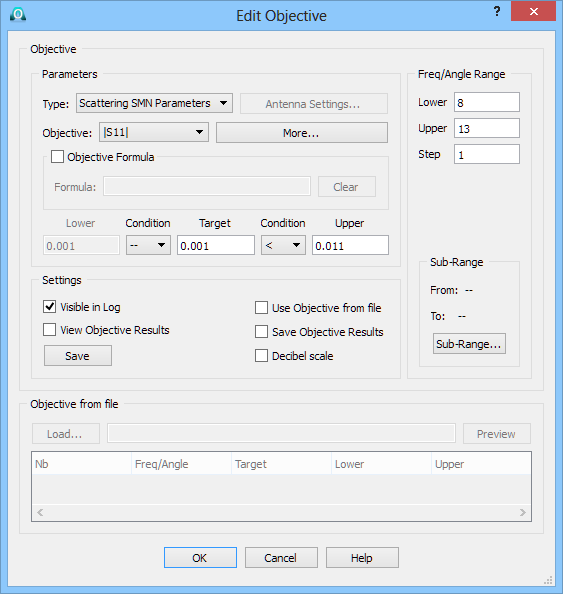

The Scattering SMN Parameters objective is based on the Full S-Parameters Matrix results and the S-Parameters in the SMN regime post-processing must be defined in the project.

The objective results can be chosen from the Objective list containing basic Full S-Parameters Matrix results  or from Add Objective Name dialogue, invoked after pressing More… button.

See Add or Edit Objective chapter for more information.
