12.5.9                    Lumped Element Info

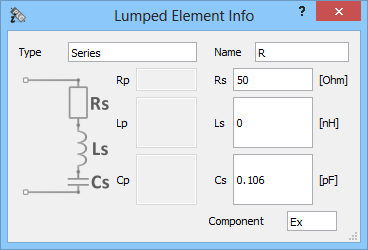

The Info… button from Lumped Impedances Info dialogue invokes Lumped Element Info dialogue for viewing the parameters of the particular lumped impedance element.

The Dynamic… button from Lumped Impedances Info dialogue and Lumped Impedances Info->Lumped Impedance Info… command from main menu or context menu invoke Lumped Element Info dialogue for viewing the parameters of the lumped impedance element in a dynamic mode – the parameters are displayed for the lumped impedance element pointed by mouse cursor in Mesh display or LC display.

The Lumped Element Info dialogue is useful in verification of the parameters of lumped impedance element inserted into the FDTD grid.

It is advised to refer to Lumped impedance element for more information regarding lumped impedance elements.
