1.1.8    Optimiser

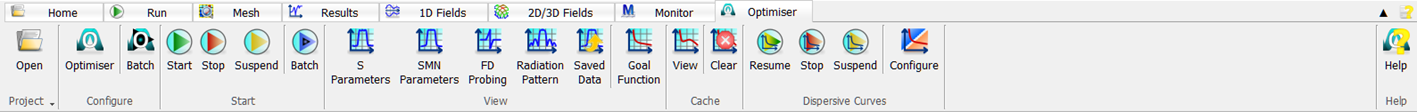

QW-Simulator Optimiser tab is arranged in sections enabling basic file operations like loading projects, configuring optimisation and optimisation batch run, starting and managing optimisation process and viewing optimisation results and progress.







Project section

mesh_project      mesh_project2

Project section contains the following commands:

button_open - opens QW-Simulator tasker, parameters, shape or freeze file

button_home_open_tasker - opens tasker file (*.ta3)

button_home_open_freeze - opens freeze file (*.sfr)

button_home_open_shape - opens shape file (*.sh3)

button_home_project_description - opens and edits project description file

button_home_edit_ta3 - edits current tasker file

button_home_import_recent - opens Import Recent Files dialogue for importing recent files list from other version of QuickWave

button_home_clear_recent - clears the list of projects that have been recently loaded

button_home_clear_env - clears the list and settings of windows that have been opened



Configure section

opt_configure

Configure section contains the following commands:

button_optimiser - opens Configure Optimiser dialogue for setting Objectives, Variables and Preferences of the optimisation process

button_batch_opt - opens Batch Run Optimiser dialogue for setting a sequence of optimisation projects



Start section

opt_start

Start section contains the following commands:

button_opt_start - starts (or resumes) the optimisation process, with objectives, variables, and parameters previously set via Configure Optimiser dialogue. If Cache exists, cache contents are taken into account while searching for an optimum solution

button_opt_stop - stops the optimisation process

button_opt_suspend - suspends the optimisation process

button_opt_batch - starts a sequence of optimisation runs



View section

opt_view

View section contains the following commands:

button_opt_spar - opens Results window with S-Parameters results with the first, best, and last result of the optimisation process

button_opt_smn - opens Results window with S-Parameters in Smn regime results with the first, best, and last result of the optimisation process

button_opt_fd - opens Results window with FD-Probing results with the first, best, and last result of the optimisation process

button_opt_ant - opens Results window with 2D radiation pattern results with the first, best, and last result of the optimisation process

button_opt_saved - opens Results window with Saved Data results with the first, best, and last result of the optimisation process

button_opt_goal - opens Results window showing the value of the goal function for consecutive optimisation steps



Cache section

opt_cache

Cache section contains the following commands:

button_opt_cacheview - opens View Optimiser Cache window showing the optimiser cache content

button_opt_cacheclear - clears the contents of the optimisation cache



Dispersive Curves section

Dispersion Curves section contains the following commands:

 - resumes the suspended dispersion curves fitting process

 - stops the dispersion curves fitting process

 - stops the dispersion curves fitting process

 - opens Dispersive Model Fitting Configuration dialogue for defining and managing dispersive curves that will be used for dispersive model fitting.





Help section

opt_help

Help section contains the following command:

button_help_opt - opens help for Optimiser commands (present chapter)
