3.5.3   Radiation Pattern Objective

The Radiation Pattern objective is based on the Radiation Pattern results and the NTF post-processing must be defined in the project.

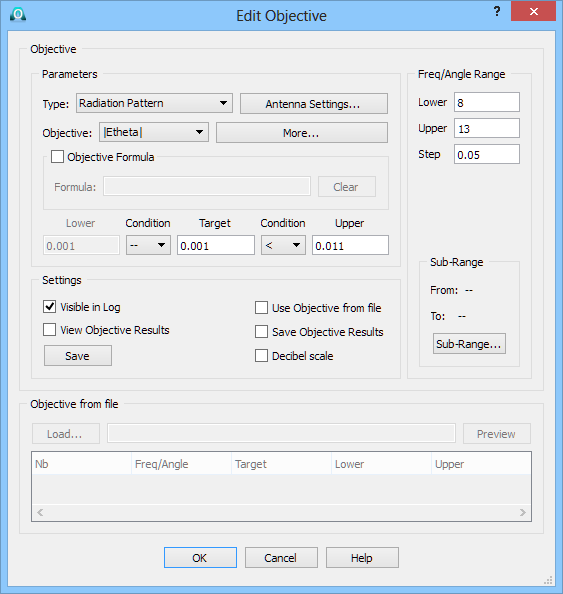

The objective results can be chosen from the Objective list containing basic NTF results  or from Add Objective Name dialogue, invoked after pressing More… button.

The Antenna Settings… button invokes the Radiation Patterns dialogue for setting 2D radiation pattern parameters.

See Add or Edit Objective chapter for more information.
