4.15 View Fields Collection

The View Fields Collection allows for loading Volume Instantaneous (*.vi3) files with field or temperature distribution after each step of the BHM process and show the step by step preview from consecutive files.

The View Fields Collection can be invoked with  button from 2D/3D Fields tab of QW-Simulator Ribbon.

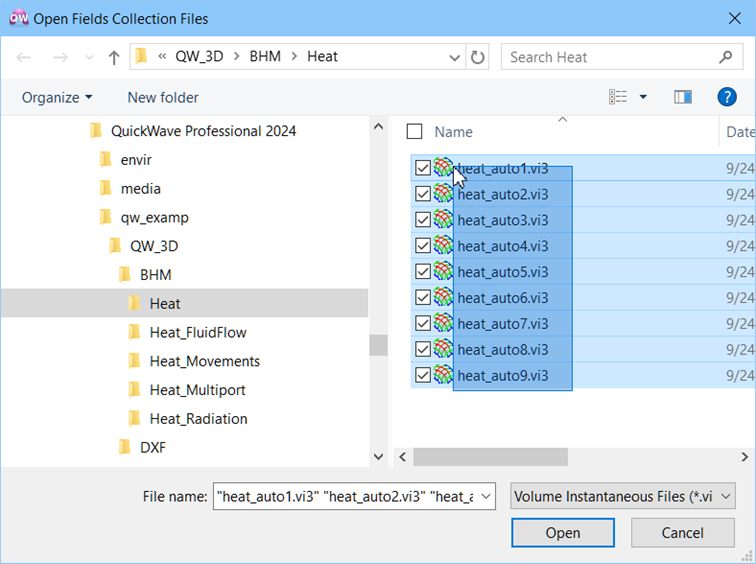

The Open Fields Collection Files dialogue will appear and multiple Volume Instantaneous files can be selected.

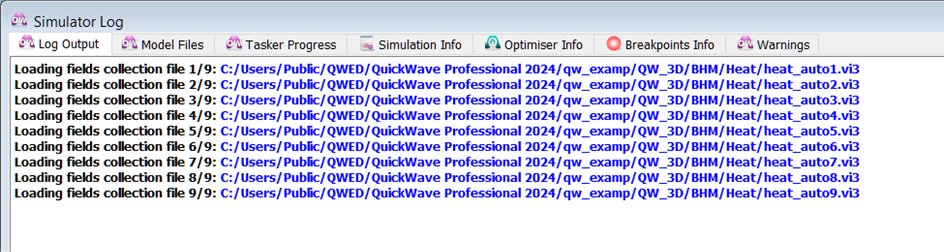

The progress of loading Volume Instantaneous files will be shown in the Log Output window.

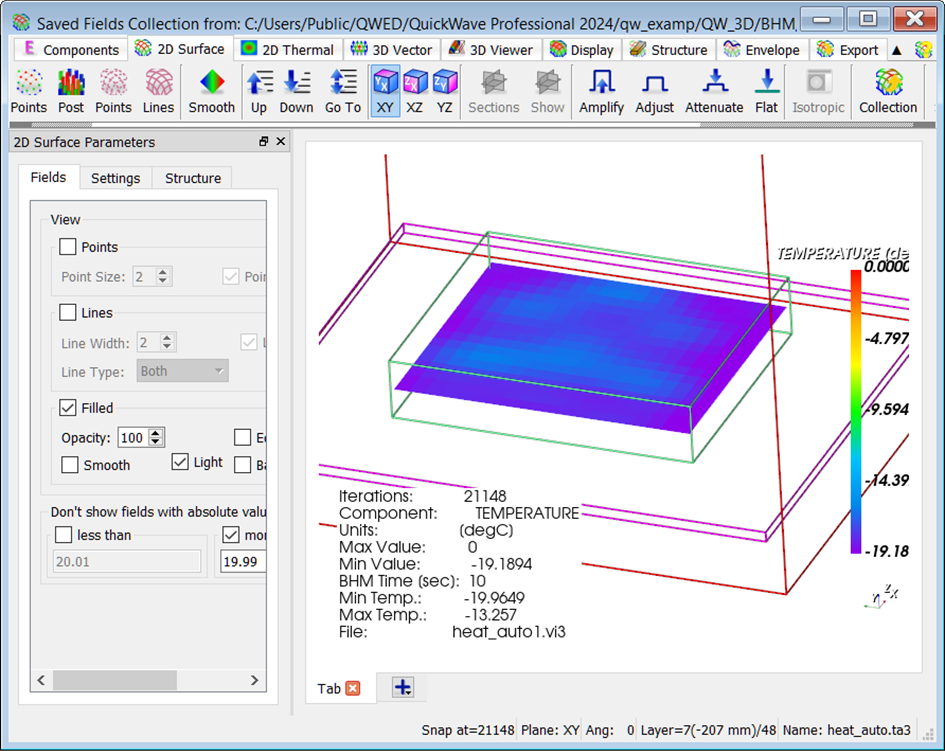

The 2D/3D Fields Distribution window will open with field/temperature distribution from the first file.

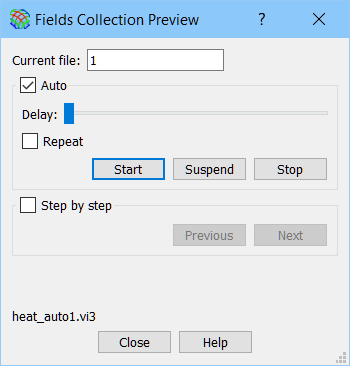

The  button in 2D Surface tab invoke Fields Collection Preview dialogue for preview of fields previously loaded from files.

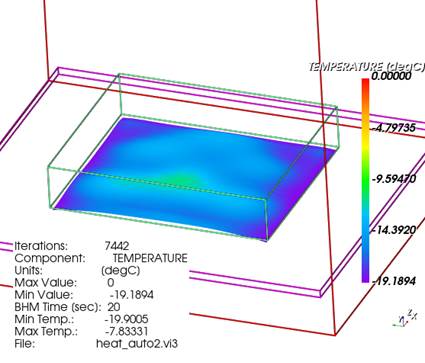

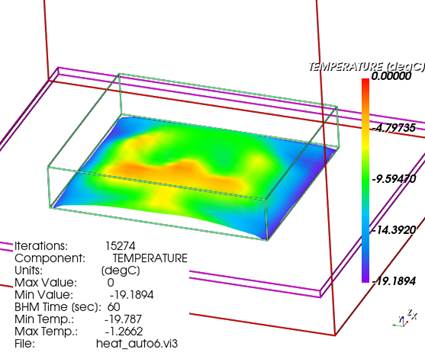

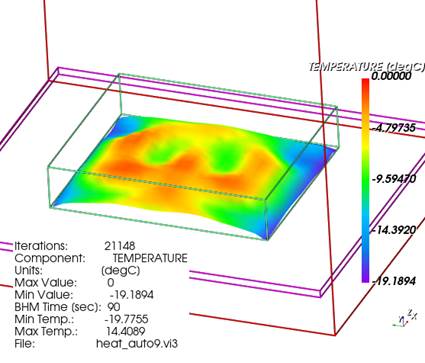

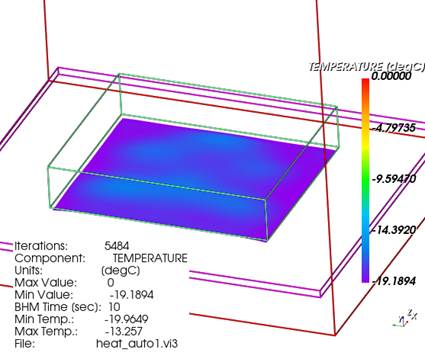

The following pictures show the consecutive steps of temperature distribution.
