4.3.1    Lines Art Display

Lines Art display presents all cells as squares and colour is combined to show the magnitude of the displayed component.

Lines Art display can be invoked with button_art_lines button in 2D Surface tab, ribbon_display0_display_artlines command under button_display_display button in Display tab or Type->Surface->Lines Art command from main menu, context menu or display dedicated colour bar context menu.





Depending on the display options for Lines Art display, which  can be changed in the 2D Surface Parameters panel, the following pictures can be obtained:

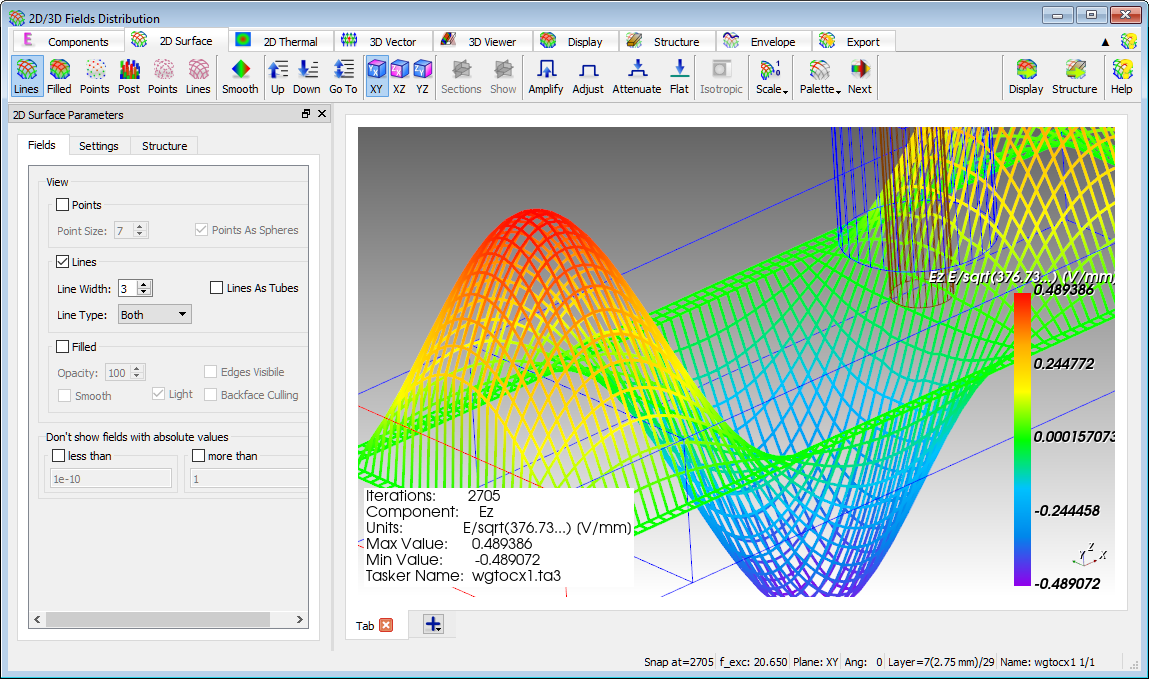

Horizontal and vertical lines.



Horizontal lines.

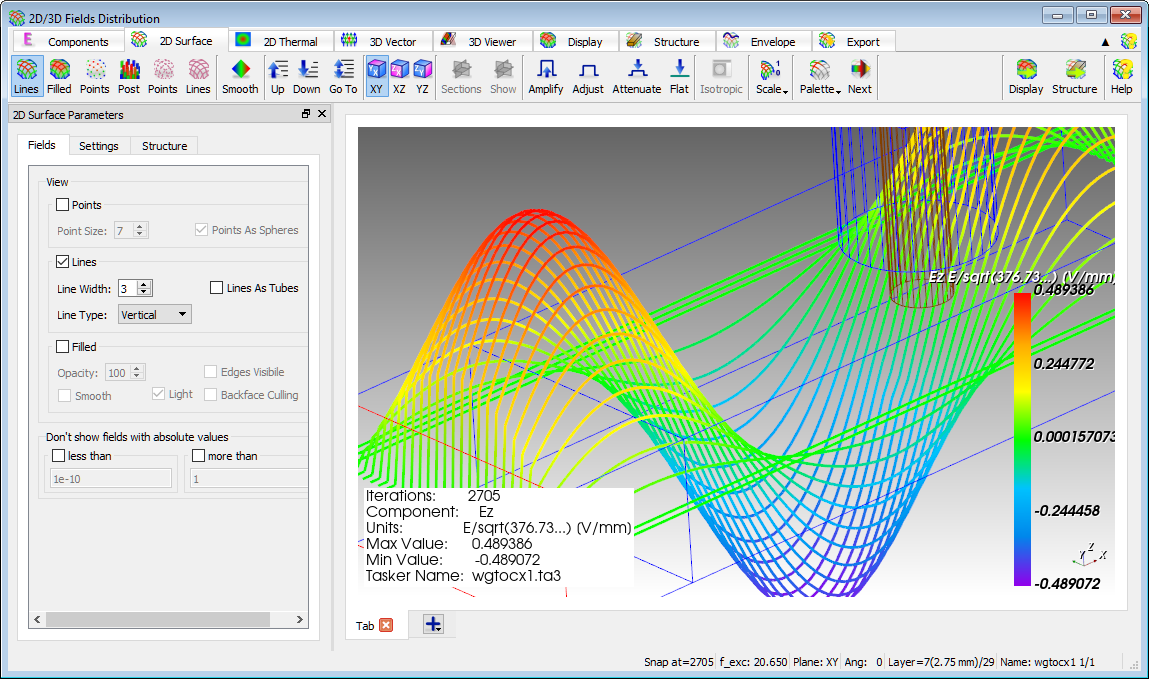

Vertical lines.
