12.5.16            Absorbing Boundary Conditions Info

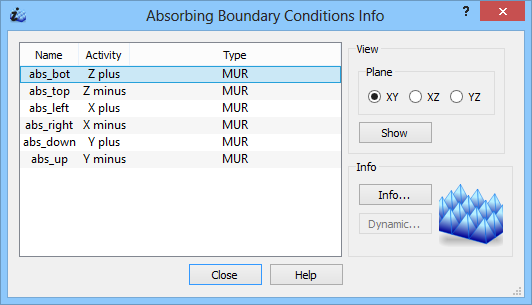

The  button in Info tab or with Absorbing Boundary Conditions Info… command from main menu or context menu invoke Absorbing Boundary Conditions Info dialogue for viewing the information about all absorbing boundary conditions defined in the project.

The Absorbing Boundary Conditions Info dialogue can be also opened when Test Mesh window started with  button from Mesh tab of QW-Simulator Ribbon or ABC command from Mesh menu of QW-Simulator main menu.

The list contains all absorbing boundary conditions walls defined in the project and their names, activity, and types are displayed. Each absorbing boundary condition wall from the list can be selected and its visual representation is displayed in the Info frame.

The Show button changes the Mesh display to show the selected absorbing boundary condition wall in the chosen Plane.

The Info… button invokes ABC Info dialogue for viewing the parameters of the absorbing boundary condition wall selected from the list.

It is advised to refer to Absorbing Boundary Conditions for more information regarding both types of absorbing boundary conditions (MUR and PML).
