5.1.3    Main Menu

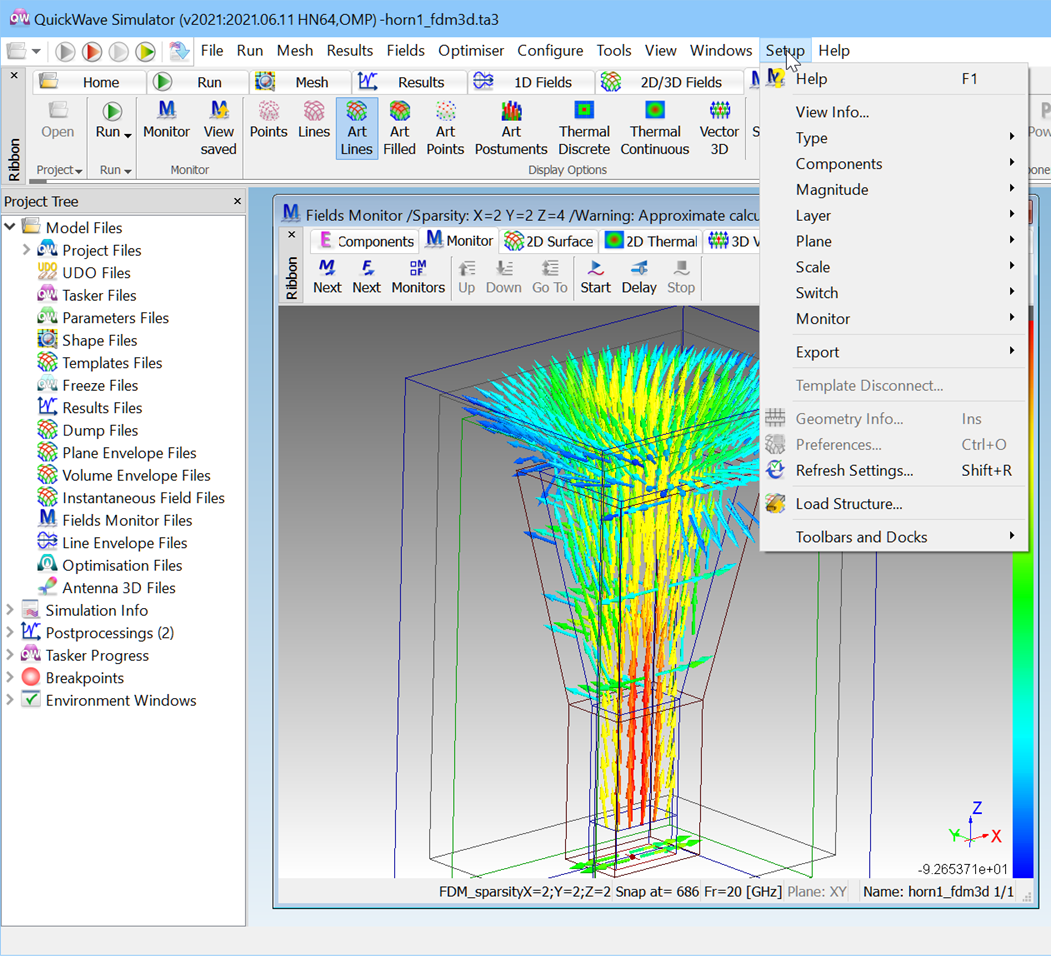

When Fields Monitor window is opened, QW-Simulator main menu is supplemented with Setup group of commands dedicated for the active Fields Monitor window.

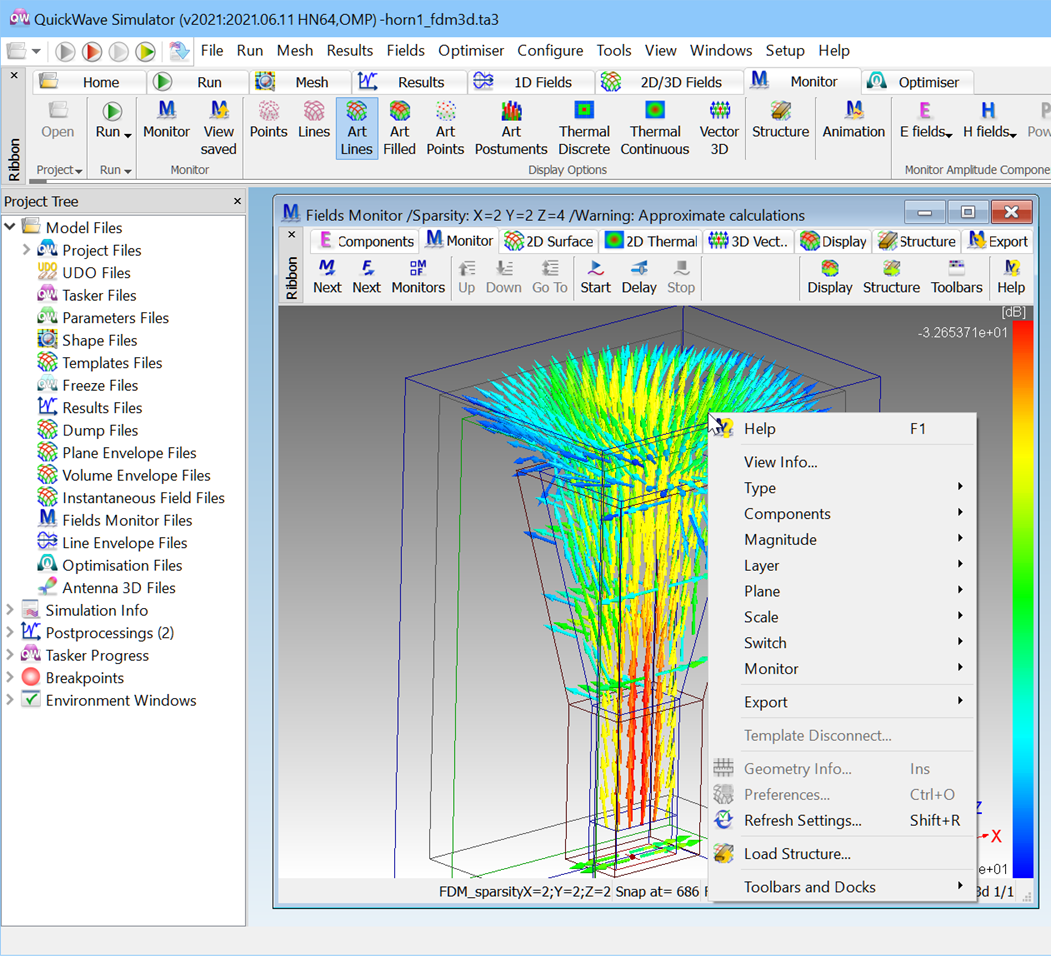

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the 2D or 3D displays.



Most of the commands included in the main menu are the same as in the Fields Monitor window Ribbon, but there are also additional commands which will be described here.

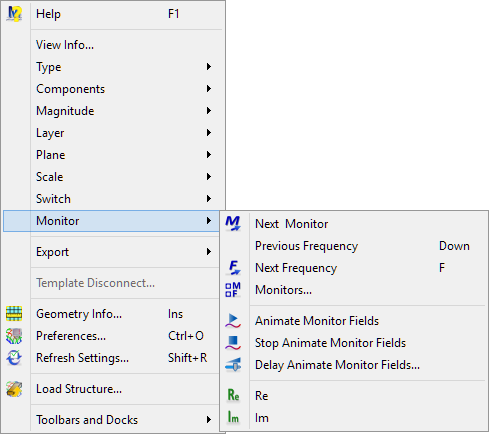

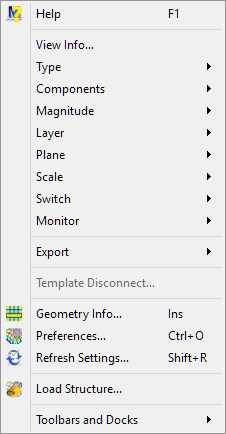

main_menu0      main_menu_monitor0



main_menu_monitor_nextmonitor - switches to the next fields monitor, if more than one have been set in the project

main_menu_monitor_freqprev - switches to the previous frequency, if more than one have been set for field monitor

main_menu_monitor_freqnext - switches to the next frequency, if more than one have been set for field monitor

main_menu_monitor_monitors - opens Monitors Settings dialogue for choosing fields monitor and frequency for the display

main_menu_monitor_start - starts field animation (this command will then change to main_menu_monitor_suspend). Field animation is available only for Fields Monitor 3D.

main_menu_monitor_stop - stops field animation

main_menu_monitor_delay - opens Delay dialogue for setting delay for field animation

main_menu_monitor_re - displays real part of selected field component

main_menu_monitor_im - displays imaginary part of selected field component



Fields Monitor window is equipped with option for importing (loading) fields monitor component distribution from file and the additional Monitor->FDM Envelope menu will be available.

main_menu_monitor

main_menu_FDM_Envelope_MS2_1 - allows the user to set several fields monitor *.fm3 files for further processing

main_menu_FDM_Envelope_MS2_2 - enables calculation of average value of the fields values included in files from the fields monitor files set list e.g. in files 1.fm3, 2.fm3, 3.fm3 etc..

main_menu_FDM_Envelope_MS2_3 -  enables extraction of envelope maximum value of the fields values included in files from the fields monitor files set list e.g. in files 1.fm3, 2.fm3, 3.fm3 etc..

main_menu_FDM_Envelope_MS2_4 - enables the conversion of all files from the FDM files set list to the fm3 auxiliary format, where information about analysed circuit geometry shape is stored as a link to shape file (*.sh3)

See Imported fields envelope chapter for more information.

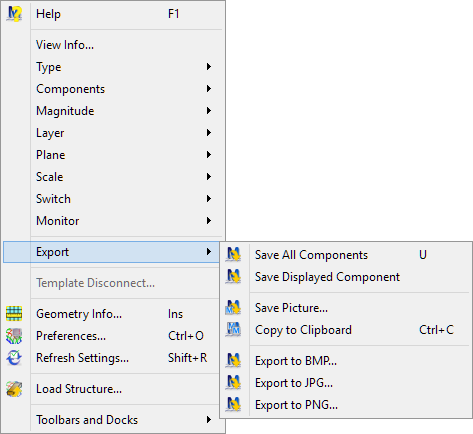

main_menu_export

main_menu_export_saveall - saves all available components to the *.fm3 files

main_menu_export_savedispl - saves the currently displayed component to the *.fm3 file

main_menu_export_picture - saves the current display to the *.bmp, *.jpg or *.png file

main_menu_export_clipboard - copies the current display to the Clipboard

main_menu_export_bmp - exports the current display to the *.bmp file

main_menu_export_jpg - exports the current display to the *.jpg file

main_menu_export_png - exports the current display to the *.png file



See Main Menu for 2D/3D Fields Distribution window chapter for other commands description.
