6.1.3    Main Menu

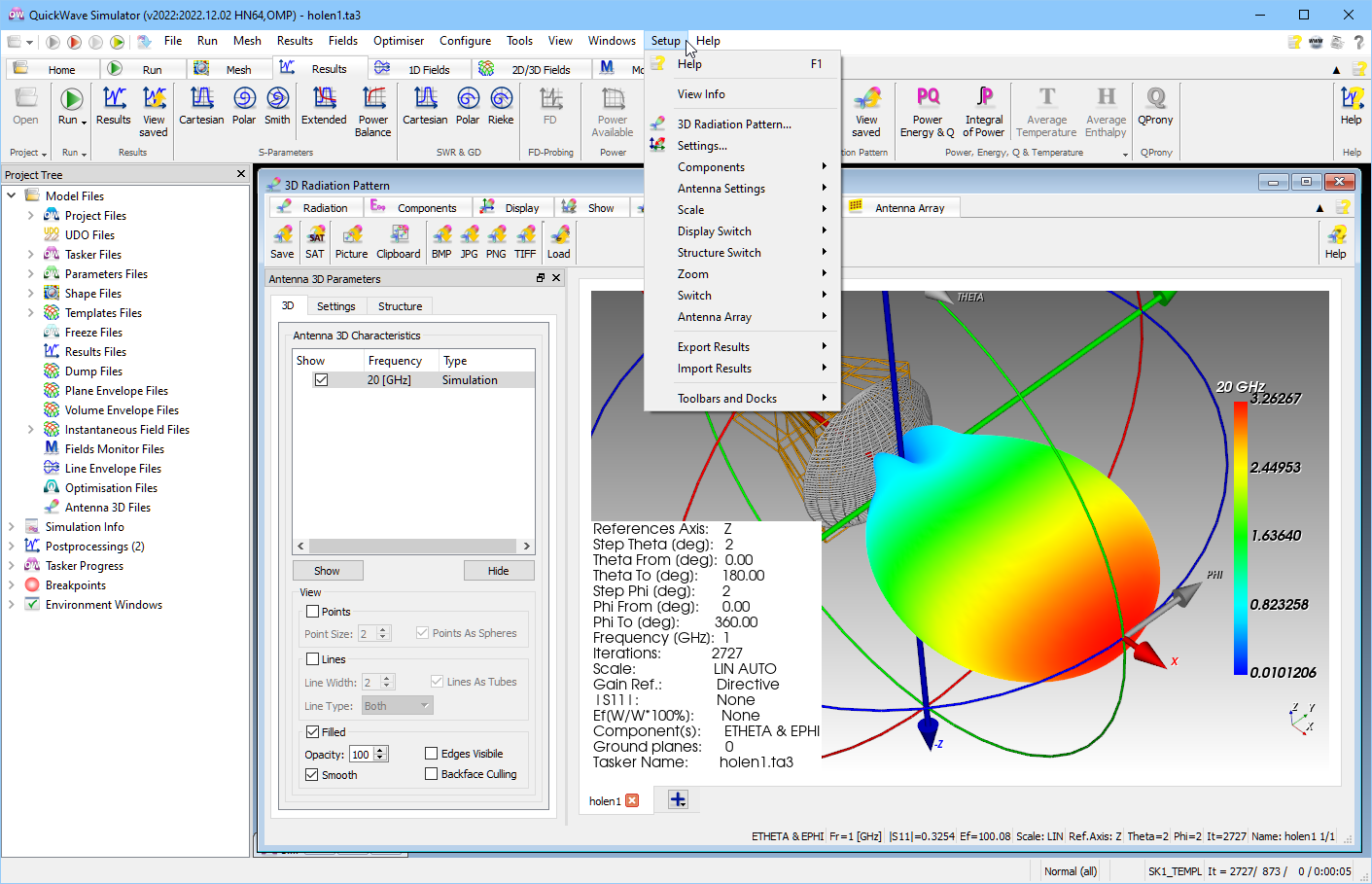

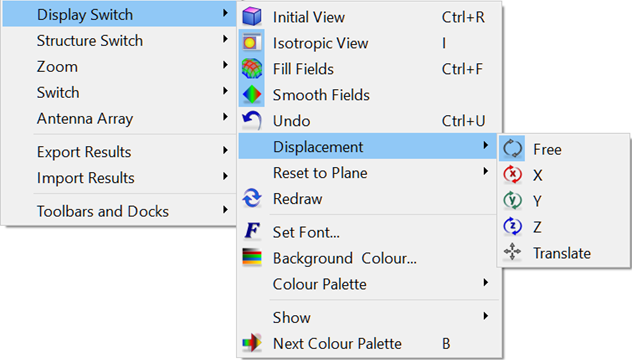

When the 3D Radiation Pattern window is open, QW-Simulator main menu is supplemented with the Setup group of commands dedicated for the active 3D Radiation Pattern window.

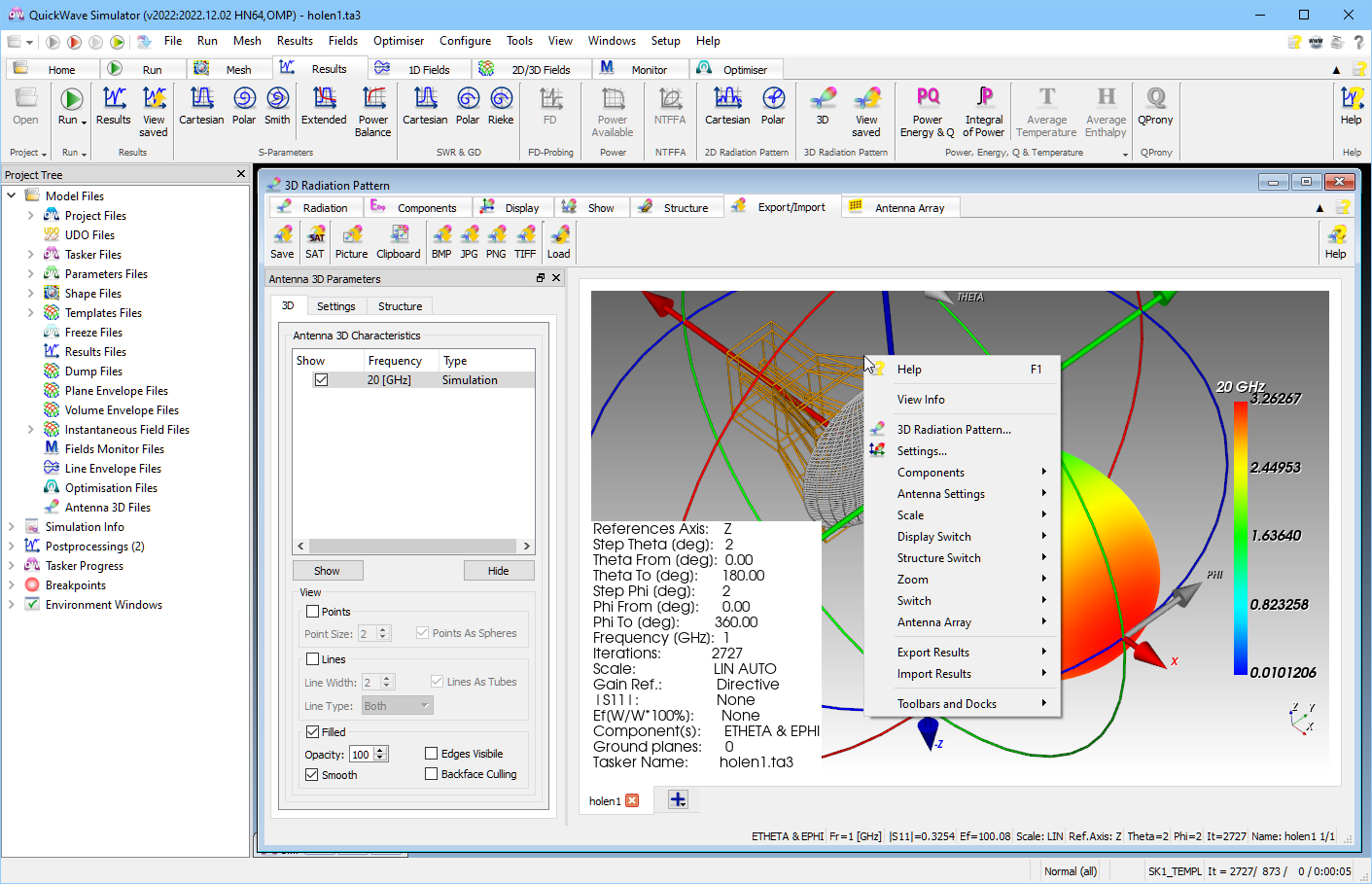

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the display.

Most of the commands included in the main menu are the same as in the 3D Radiation Pattern window Ribbon, but there are also additional commands which will be described here.

 - opens Info Antenna 3D dialogue with information about current 3D radiation pattern parameters

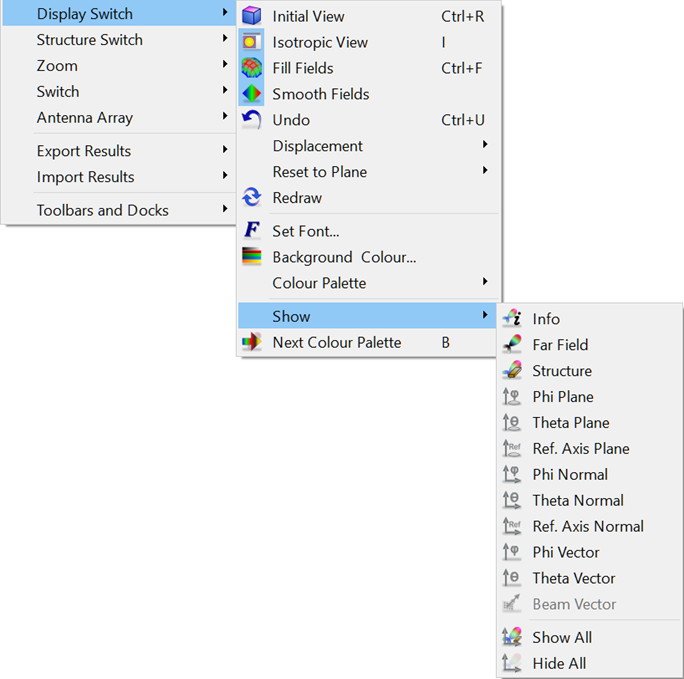

 - undo the last displacement operation

 - opens Select Font dialogue for choosing the font for the minimum and maximum values of the colour scale that are shown at the top and bottom of the colour bar

 - switches to the next colour palette for the 3D radiation pattern display

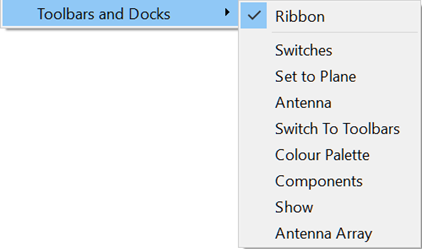

Toolbars and Docks menu contains the list of all dock windows and toolbars and allows selecting the visibility of them.
