12.5.6                Dispersive Media Info

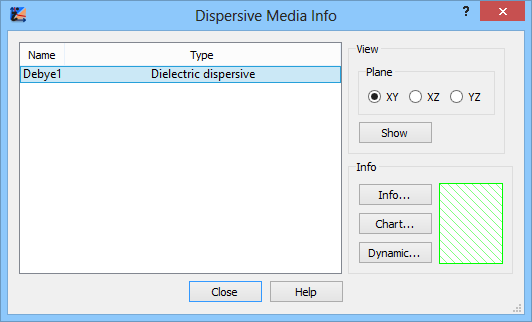

The  button in Info tab or with Media Info->Dispersive Media Info… command from main menu or context menu invoke Dispersive Media Info dialogue for viewing the information about all dispersive media defined in the project.

The Dispersive Media Info dialogue can also be invoked when Test Mesh window is opened using  button from Mesh tab of QW-Simulator Ribbon or Dispersive Media command from Mesh menu of QW-Simulator main menu.

The list contains all dispersive media defined in the project and their names and types are displayed. Each medium from the list can be selected and its visual representation (using Brush and Pen settings defined within the media parameters in QW-Editor) is displayed in the Info frame.

The Show button changes the Mesh display to show the selected medium in the chosen Plane.

The Info… button invokes Medium Info dialogue for viewing the parameters of the medium selected from the list.

The Dynamic… button invokes Medium Info dialogue for viewing the parameters of the medium in a dynamic mode – the parameters are displayed for the medium pointed by mouse cursor in Mesh display or LC display.

The Chart… button invoke Dispersive Media Chart for verification of the frequency-dependent properties of the medium in the frequency band of interest.

It is advised to refer to Materials chapter for more information regarding media.
