Fabry-Perot Open Resonator
Dielectrics
Non-contact FPOR measurements deliver ε and tanδ of bulk dielectrics.
Polymers
The open resonator quantifies ε and tanδ of low-loss polymer sheets without electrodes.
Ultra-Thin FIlms
FPOR resolves dielectric properties of films just a few µm thick by analysing minute Q-factor shifts,
Higly-Resistive Semiconductors
extracts bulk resistivity of semiconductors like Si or SiC.
|
10 – 130 GHz* |
|
Dk = 1 – 15 (achievable accuracy ± 0.2 %) |
|
Df > 5 × 10–6 (achievable accuracy ± 2 %) |
|
1 µm – 3 mm |
|
105 – 145 mm ** |
|
> 1 minute |
|
room, 0 – 80 °C (on request) |
|
|
|
|
*Available also in various frequency-range configurations (e.g. 10 – 26.5 GHz, 10 – 43 GHz, 10 – 50 GHz, 10 – 67 GHz, 10 – 110 GHz, etc.)
** minimum required sample size may differ depending on chosen measurement frequency range
Now available – D-Band Fabry-Perot Open Resonator up to 170 GHz
Overview
 |
 |
Repeatability
 |
 |
Polymers
 |
 |
In-plane anisotropy
 |
 |
Highly-resistive semiconductors
 |
 |

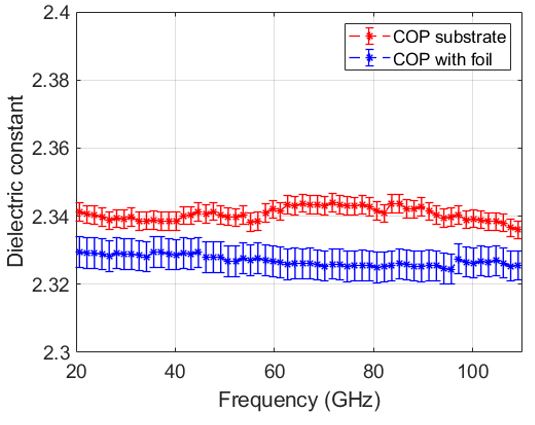

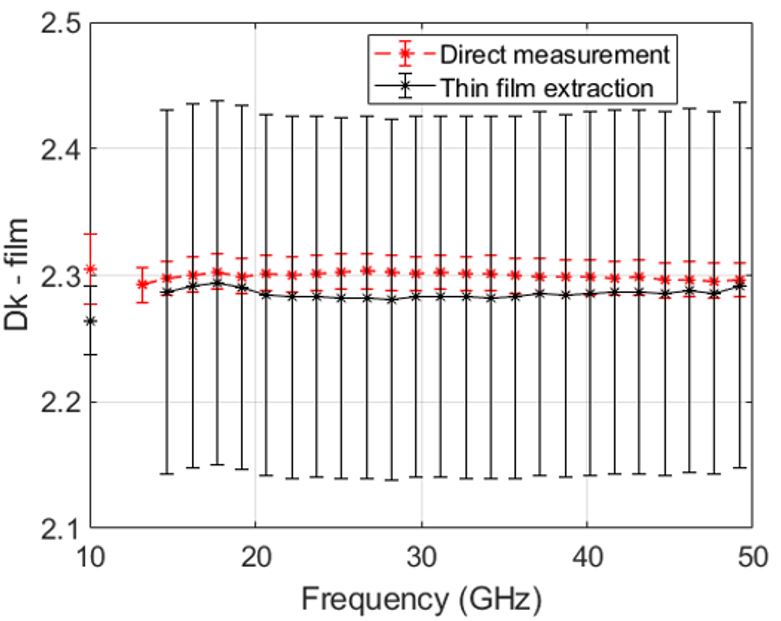

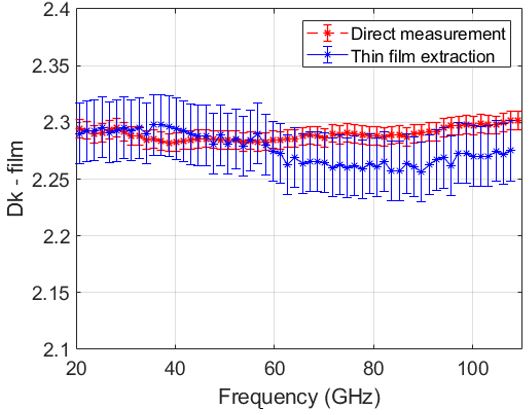

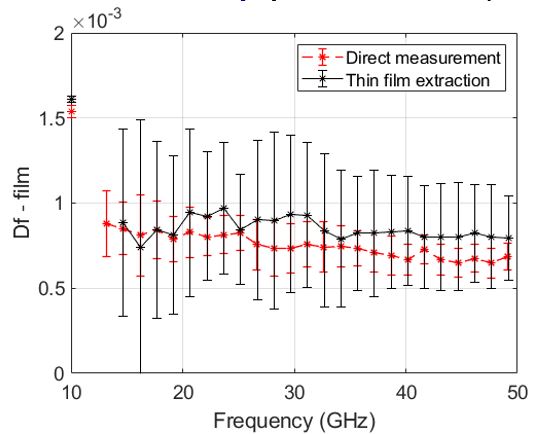

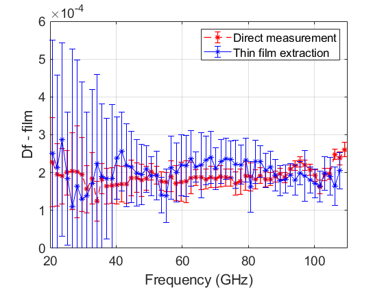

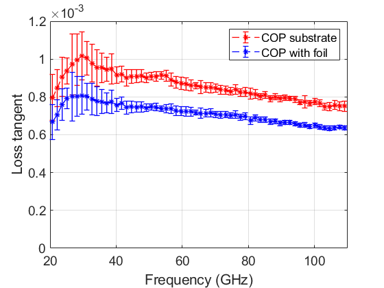

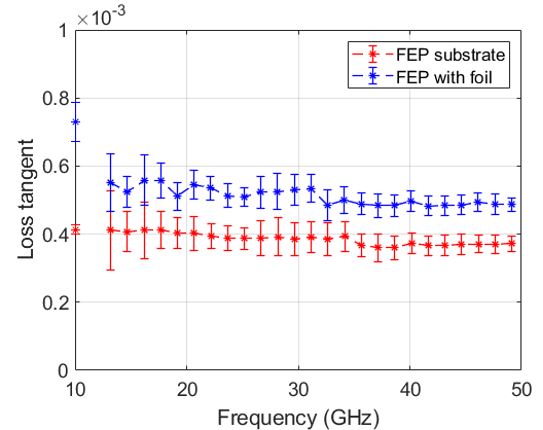

Thin films on substrates
 |
 |
 |
 |
 |
 |
Link to contact us via form:
Dielectric measurements with a Fabry-Perot open resonator (up to 130 GHz)
