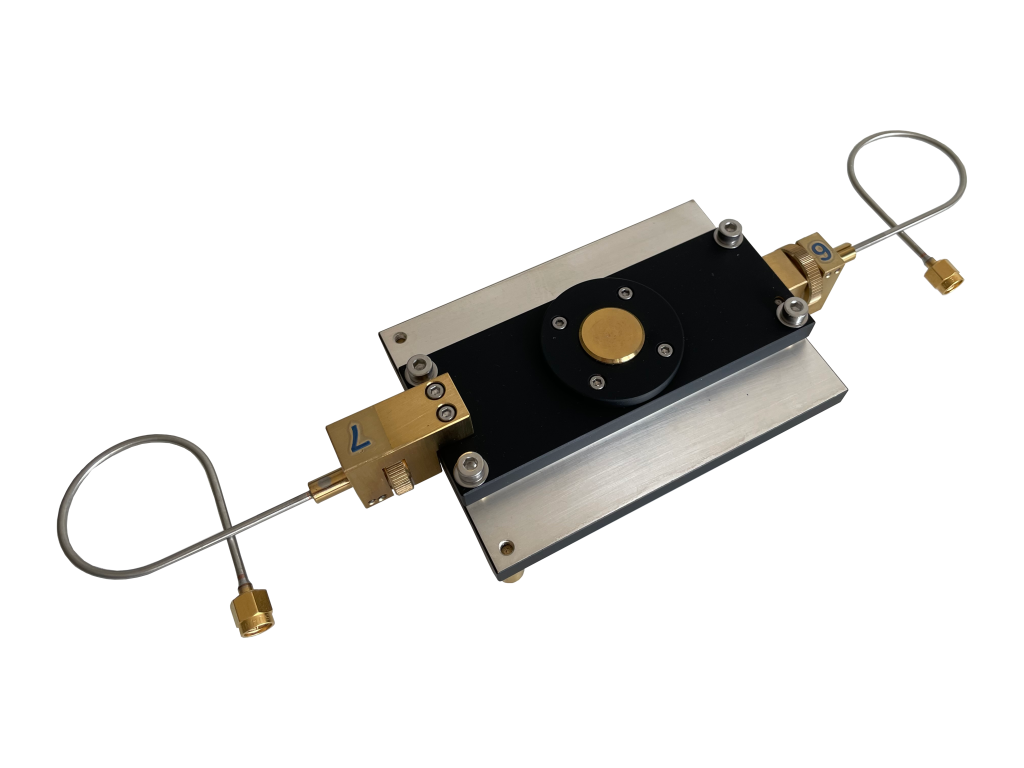

2D Split-Post Dielectric Resonator
Dielectrics
Non-contact FPOR measurements deliver ε and tanδ of bulk dielectrics.
Polymers
The open resonator quantifies ε and tanδ of low-loss polymer sheets without electrodes.
Ultra-Thin FIlms
FPOR resolves dielectric properties of films just a few µm thick by analysing minute Q-factor shifts,
Higly-Resistive Semiconductors
extracts bulk resistivity of semiconductors like Si or SiC.
|
10 GHz |
|
Dk = 1 – 100 (accuracy ± 0.15%) |
|
Df > 2 × 10−5 (accuracy ≤ 2%) |
|
ρ = 102 – 104 Ω·cm |
|
few µm up to 1 mm |
|
up to 80 × 120 mm |
|
|
|
|
