12.1.3                    Main Menu

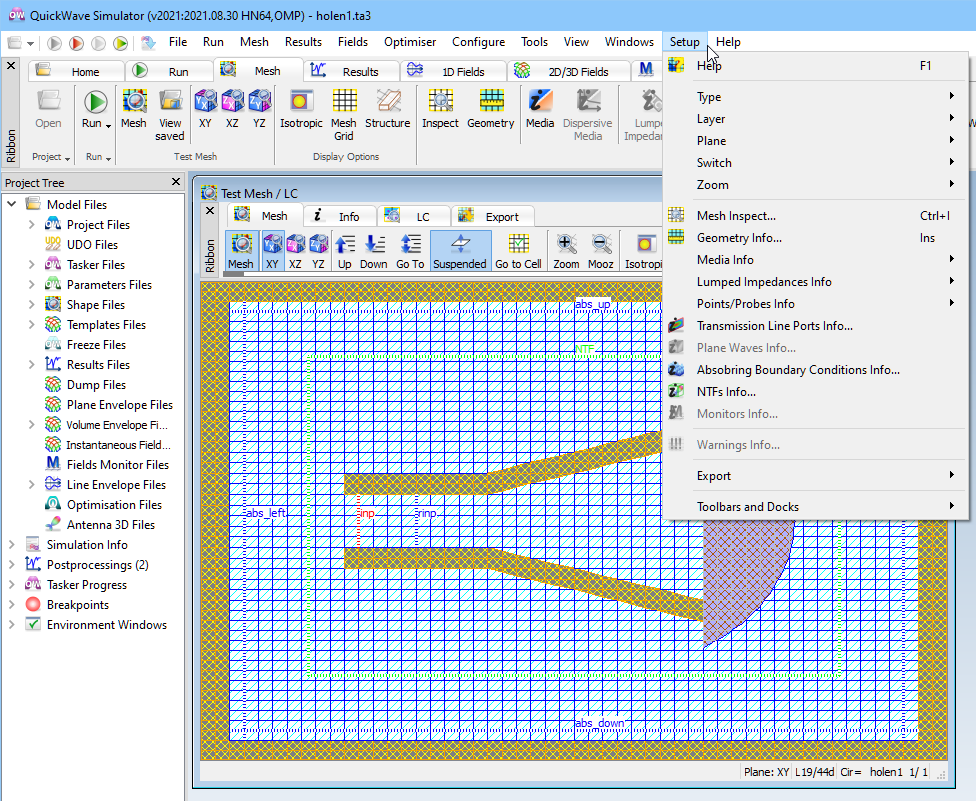

When Test Mesh window is opened, QW-Simulator main menu is supplemented with Setup group of commands dedicated for the active Test Mesh window.

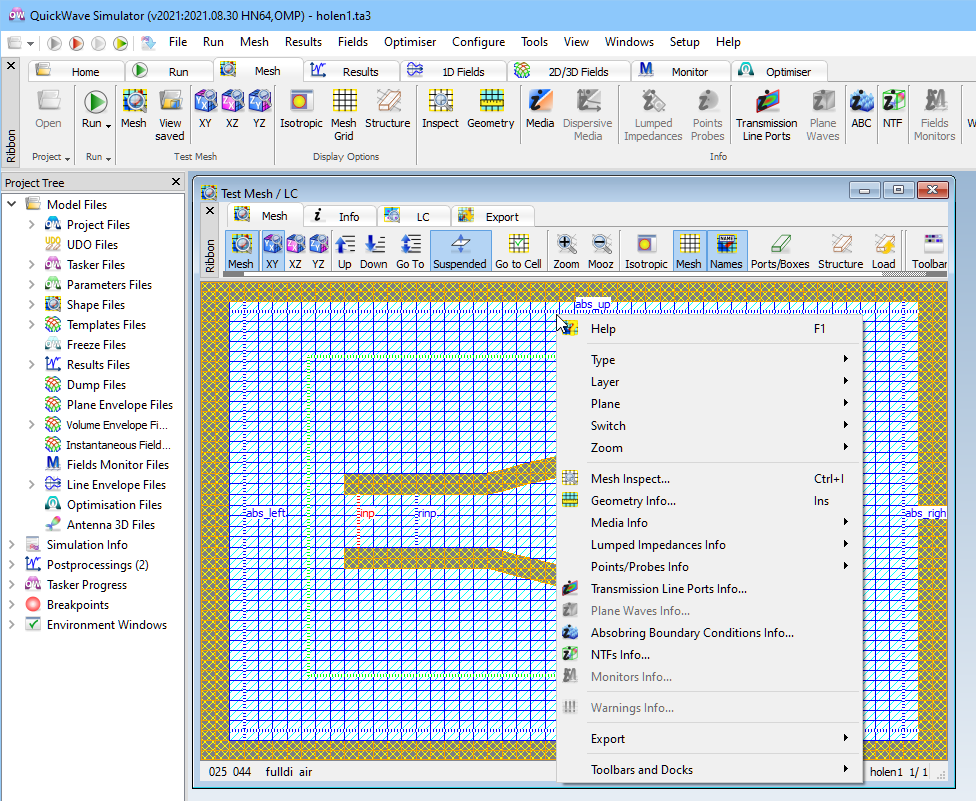

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the display.



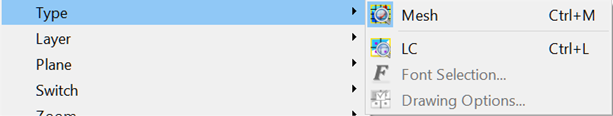

Most of the commands included in the main menu are the same as in the Test Mesh window Ribbon, but there are also additional commands which will be described here.

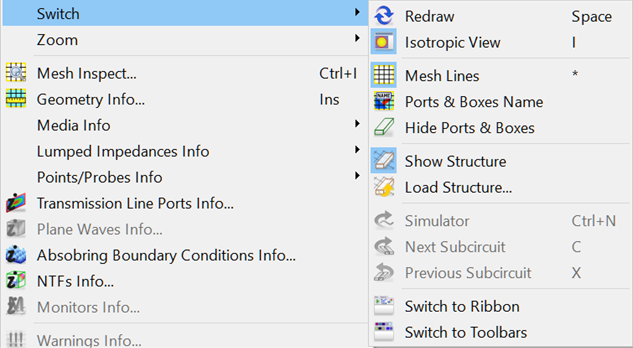

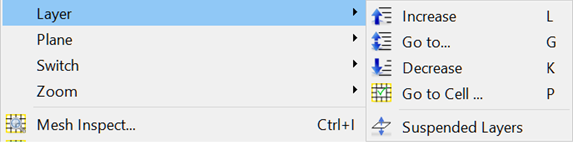

menu_switch_simulator - switches to the next simulator, if we are working in a multi-simulator regime

menu_switch_subc - switches to the next subcircuit, if we are working with QW-Simulator MultiGPU

menu_switch_subcprev - switches to the previous subcircuit, if we are working with QW-Simulator MultiGPU

main_menu_redraw - refreshes current display



main_menu_zoom



main_menu_media

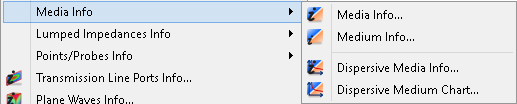

main_menu_mediuminfo - invokes Medium Info dialogue for viewing the parameters of the medium in a dynamic mode – the parameters are displayed for the medium pointed by mouse cursor in Mesh display or LC display

main_menu_mediumdispchart - invokes Dispersive Media Chart for verification of the frequency-dependent properties of the medium in the frequency band of interest



main_menu_lumped

main_menu_lumpedimpinfo - invokes Lumped Element Info dialogue for viewing the parameters of the lumped impedance in a dynamic mode – the parameters are displayed for the lumped impedance pointed by mouse cursor in Mesh display or LC display



main_menu_points

main_menu_pointinfo - invokes Point/Probe Info dialogue for viewing the parameters of the point port or probe in a dynamic mode – the parameters are displayed for the point port or probe pointed by mouse cursor in Mesh display or LC display

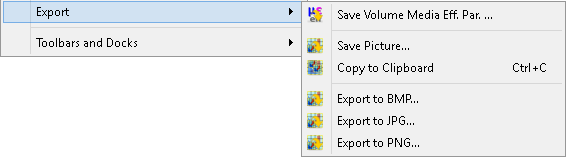

main_menu_export

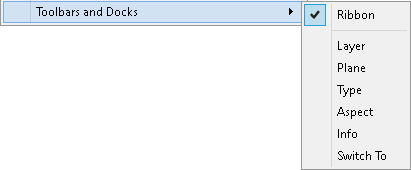

Toolbars and Docks menu contains the list of all dock windows and toolbars and allows selecting their visibilitythem.

main_menu_toolbars
