12.5.11            Point/Probe Info

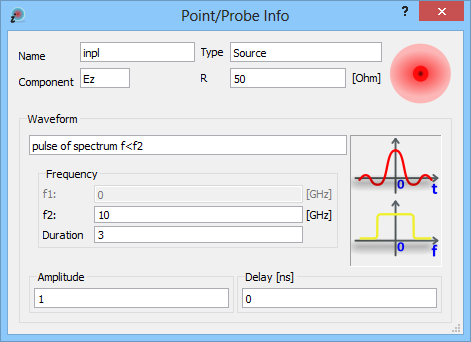

The Info… button from Points/Probes Info dialogue invokes Point/Probe Info dialogue for viewing the parameters of the particular point port or probe.

The Dynamic… button from Points/Probes Info dialogue and Points/Probes Info->Point/Probe Info… command from main menu or context menu invoke Point/Probe Info dialogue for viewing the parameters of the point port or probe in a dynamic mode – the parameters are displayed for the point port or probe pointed by mouse cursor in Mesh display or LC display.

The Point/Probe Info dialogue is useful in verification of the parameters of point port or probe inserted into the FDTD grid.

It is advised to refer to Point source and Point probe for more details regarding point sources and probes.
