2.1.3    Main Menu

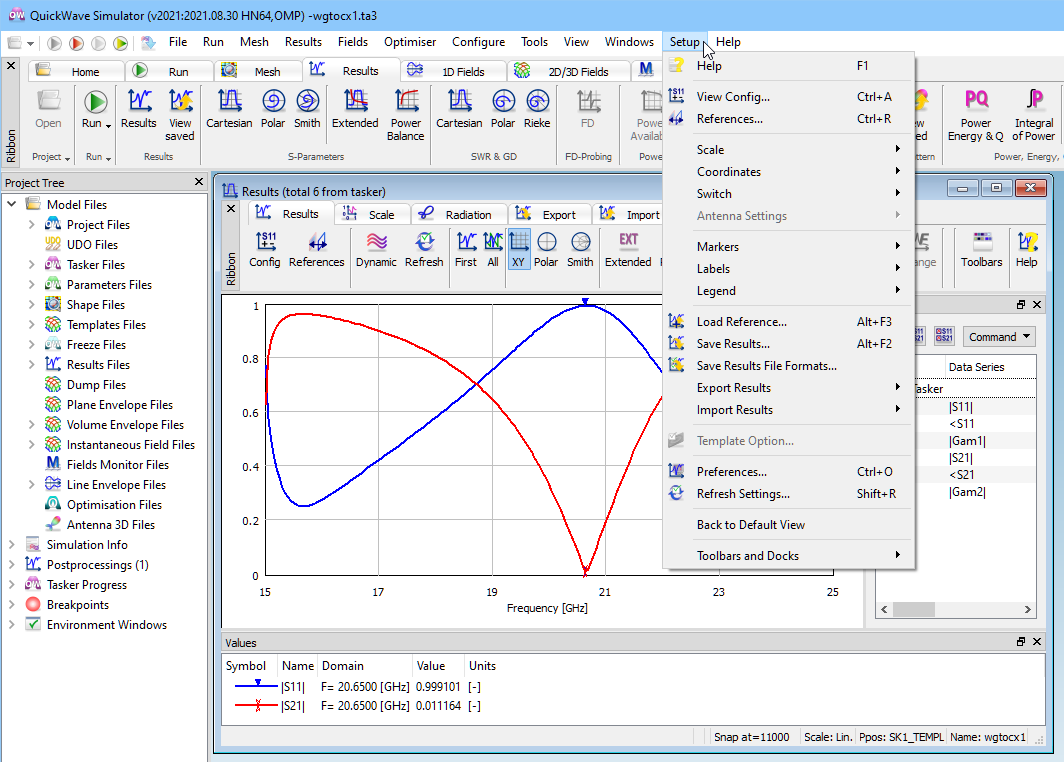

When Results window is opened, QW-Simulator main menu is supplemented with Setup group of commands dedicated for the active Results window.

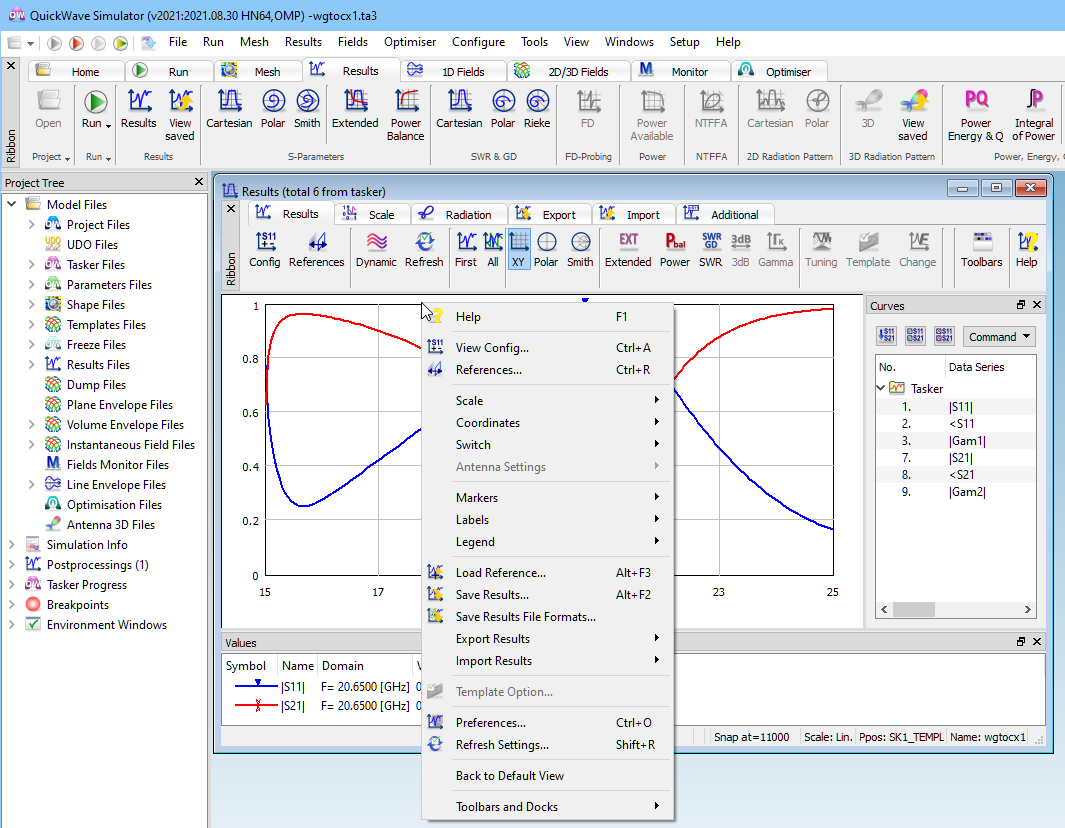

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the Results Display.



Most of the commands included in the main menu are the same as in the Results window Ribbon, but there are also additional commands which will be described here.

menu_backtodefault - restores the default proportions for XY orthogonal (Cartesian) chart

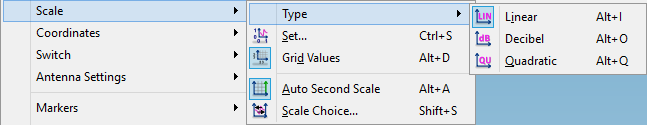

menu_scale

See Results chapter for commands description.



menu_coordinates

See Scale chapter for commands description.

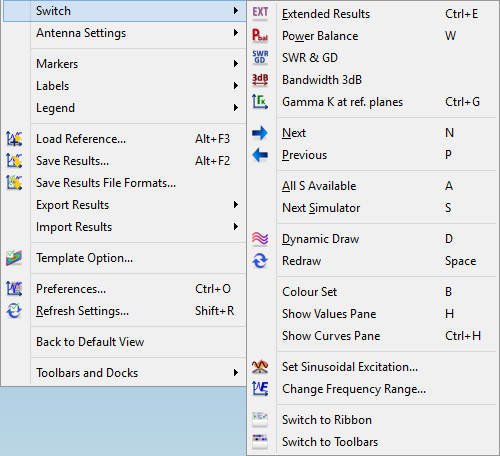

menu_switch

menu_switch_next - shows next results curve from the list

menu_switch_previous - shows previous results curve from the list

menu_switch_allsavaliable - applies to the case of Smn regime for S-Parameters post-processing in the multisimulator mode. It causes that all Smn curves are loaded from all the simulators, full corrections for imperfect matching at the ports are applied, and all fully corrected Smn curves become available for display.

menu_switch_nextsimulator - applies to the case of Smn regime for S- Parameters post-processing in the multisimulator mode. It loads the results of the next simulator (and abandons the results of the previous simulator).

menu_switch_colourset - changes the colour palette for curves

menu_switch_showval - shows or hides Values Pane

menu_switch_showcurves - shows or hides Curves Pane

menu_switch_totoolbars - hides the Results window Ribbon and shows all Results window Toolbars

menu_switch_toribbon - hides all Results window Toolbars and shows Results window Ribbon



See Results chapter for other commands description.

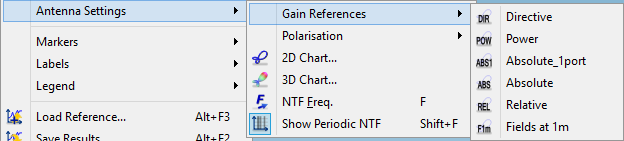

menu_antenna1      menu_antenna2

See Radiation chapter for commands description.

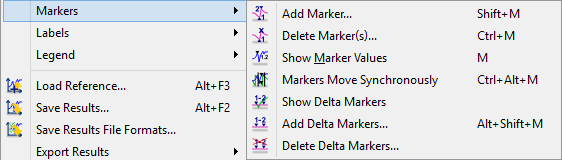

menu_markers



menu_labels      menu_legend

See Additional chapter for commands description.

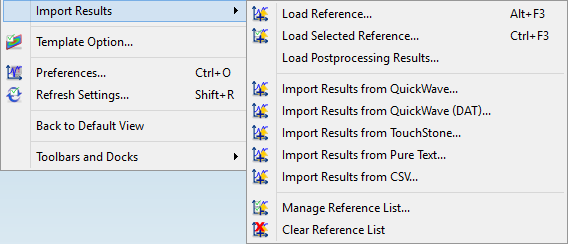

      menu_import

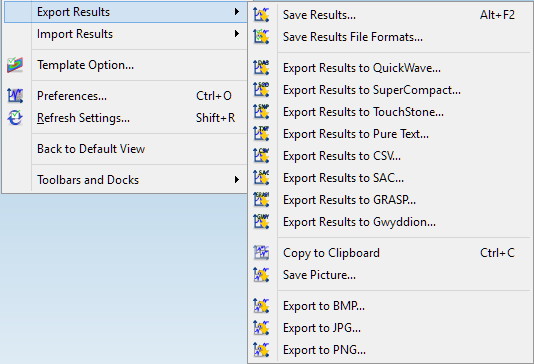

 - exports simulation results in Gwyddion format to the *.gwy file. See www.gwyddion.net website for more information.



menu_import_loadppos - allows loading results from other FD-Probing post-processings. It will open FD-Probing Postprocessings dialogue for choosing other FD-Probing post-processings.



See Export and Import chapters for commands description.

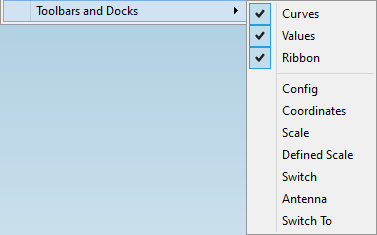

Toolbars and Docks menu contains the list of all dock windows and toolbars and allows selecting the visibility of them.

menu_toolbars
