1.1 Ribbon
QW-Simulator Ribbon contains of the following tabs:
QW-Simulator Ribbon is organised in a series of tabs divided in sections with grouped commands and contains the following types of buttons and controls:
- push button
- push button with commands
- push button which can be off or on
- small push button with the dynamic list of choices
- slider for setting the value
- label button with commands
Please note that commands availability is dependent on the state of simulation, project type, post-processings, etc. The reason of the unavailability is described in the tooltip of the command:

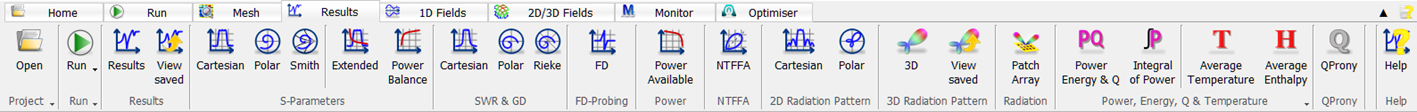

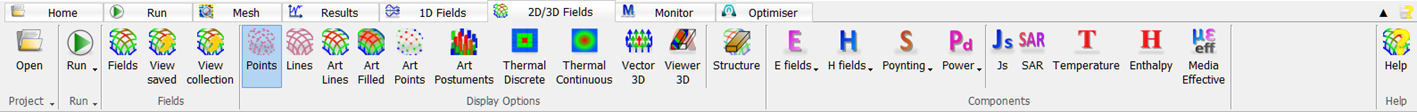

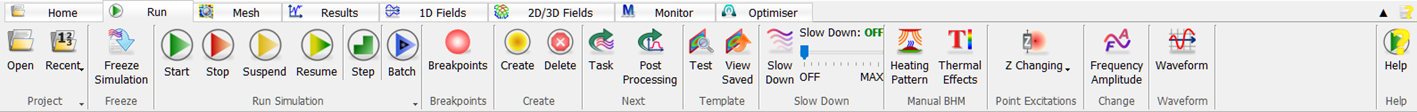

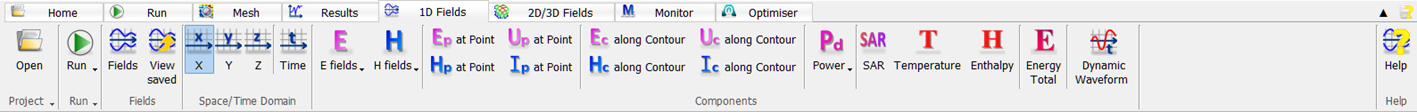

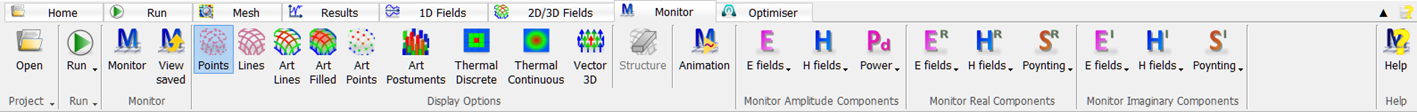

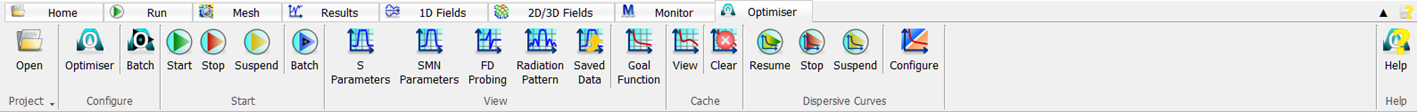

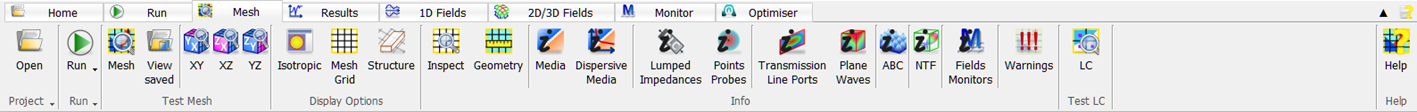

QW-Simulator ribbon is organised in Home, Run, Mesh, Results, 1D Fields, 2D/3D Fields, Monitor, and Optimiser tabs, which will be described in detail further in this section.
